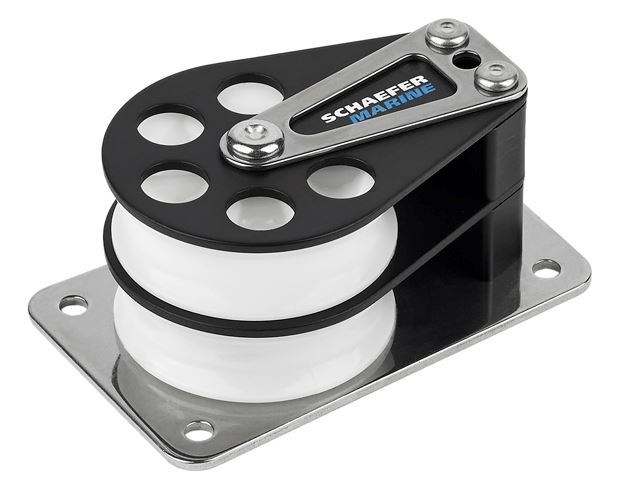

Schaefer 5 Series Cheek Block 504-28

Schaefer 5 Series Cheek Block 504-28
SKU
FAW-SCH-504-28
A
Maximum line size: 7/16" (11mm)
B
Length: 3-5/8" (92mm)
C
Width: 2-7/32" (57mm)
D
Height: 1-19/32" (40mm)
E
Sheave diameter: 2" (51mm)
WLL
Bottom Sheave: 1750lbs. (795kg) : Top Sheave: 350lbs (159kg)
Note
Material: Stainless Steel Base, Aluminum Cheek
Market price:
$118.15
Our price:
$88.61
  • Details
  • Send to friend
Save 25%
Schaefer flat base cheek blocks are ideal for use on spars or the deck to lead sheets, halyards, reefing gear and any control line requiring a smooth lead.

Features:
Flat base distributes loads to a larger surface area than other designs that place loads on the mounting bolts only
Strong stainless steel base
Delrin™ sheaves
