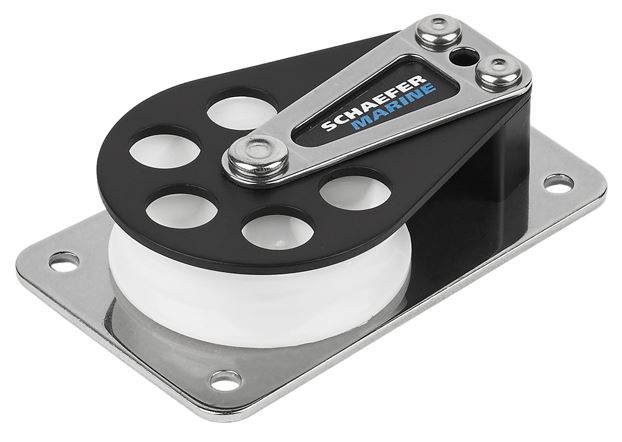

Schaefer 5 Series Cheek Block 504-11

Schaefer 5 Series Cheek Block 504-11
SKU
FAW-SCH-504-11
A
Maximum line size: 7/16" (11mm)
B
Length: 3-5/8" (92mm)
C
Width: 2-7/32" (57mm)
D
Height: 7/8" (22mm)
E
Sheave diameter: 2" (51mm)
WLL
1750 lbs
Note
Material: Stainless Steel Base, Aluminum Cheek
Our price:
$99.99
  • Details
  • Send to friend
Schaefer flat base cheek blocks are ideal for use on spars or the deck to lead sheets, halyards, reefing gear and any control line requiring a smooth lead.

Features:
Flat base distributes loads to a larger surface area than other designs that place loads on the mounting bolts only
Strong stainless steel base
Delrinâ„¢ sheave
